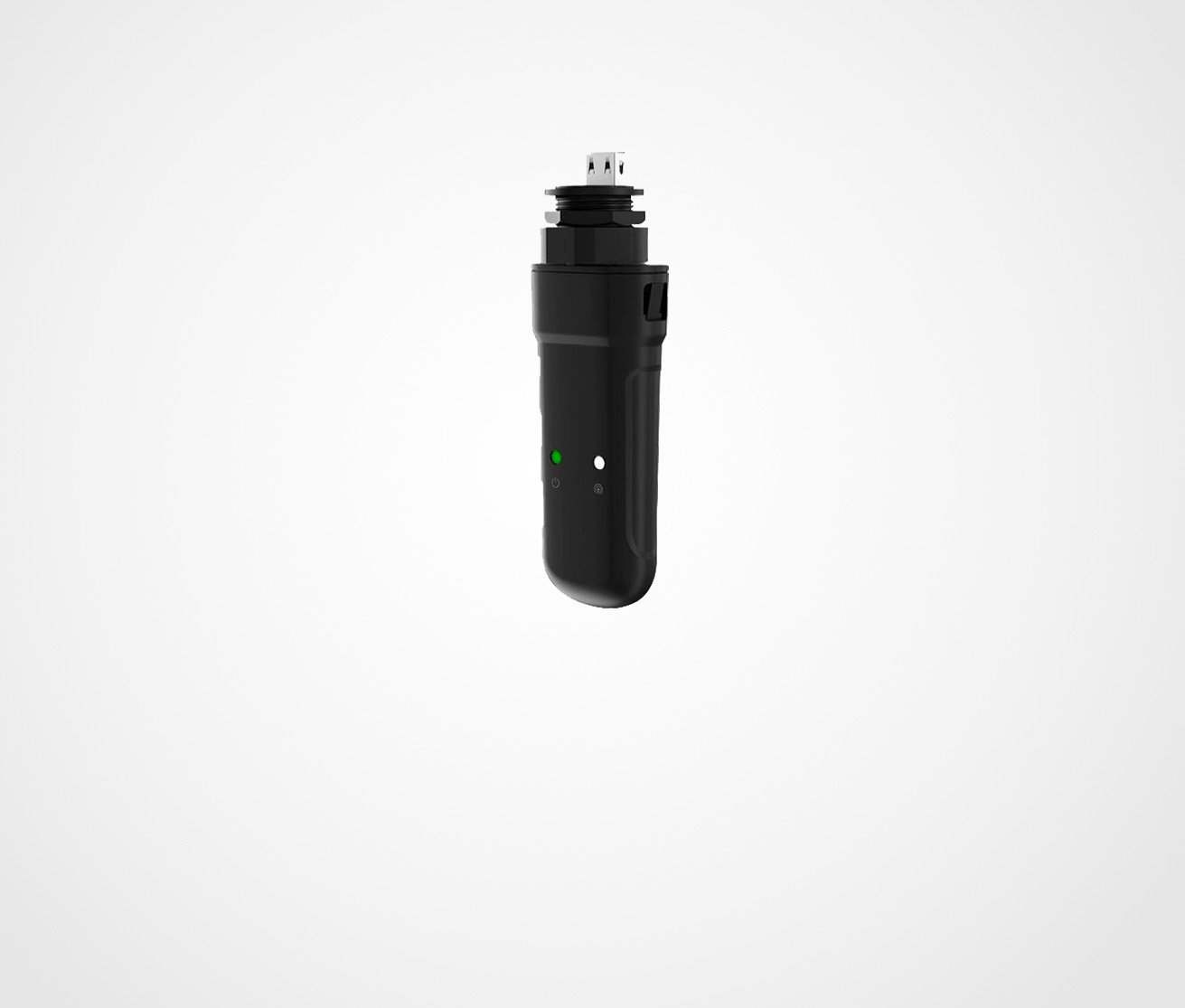

The Sigen Communication Module (Sigen CommMod) keeps your Sigen Energy system securely connected, allowing you to monitor performance and manage your system remotely through the mySigen app. With support for 2G, 3G and 4G mobile networks, it delivers reliable communication even in locations where wired internet isn’t available. Its plug-and-play design makes installation quick and straightforward, while the IP66-rated enclosure ensures dependable performance in Australia’s harsh outdoor conditions. Compatible with the Sigen Hybrid Inverter and Sigen Energy Controller, the CommMod helps keep your system connected, monitored and operating efficiently.
The Sigen Communication Module provides reliable wireless connectivity between your Sigenergy system and the cloud, enabling real-time monitoring, remote diagnostics and firmware updates. With its plug-and-play USB design, IP66-rated protection and support for 2G, 3G and 4G communication, it delivers dependable performance for residential and commercial energy installations.
|
|
|||
|
Connection interface |
USB |
||
| Installation type | Plug-and-play | ||
| Display | LED indicators | ||
| Dimensions (W / H / D) | 52 / 112 / 33 mm | ||
| Weight | 90 g | ||
| Ingress protection rating | IP66 | ||
| Power consumption (typical) | < 4 w | ||
| Supported SIM card | Micro-SIM (12mm * 15mm) | ||
| Supported standards |
LTE-FDD B1/3/7/8/20/28A LTE-TDD B38/40/41 WCDMA B1/8 GSM/EDGE B3/8 |
||
| Storage temperature range | -40 ~ 70 °C | ||
| Operating temperature range | -30 ~ 60 °C | ||
| Relative humidity range | 0% ~ 95% | ||
| Max. operating altitude | 4000 m | ||
| Controller / Inverter compatibility |
Sigen Energy Controller series Sigen Hybrid Inverter series |
||
*To ensure stable data transmission, the mobile signal for 2G signal ≥ 4 bars, 3G/4G signal ≥ 3 bars
