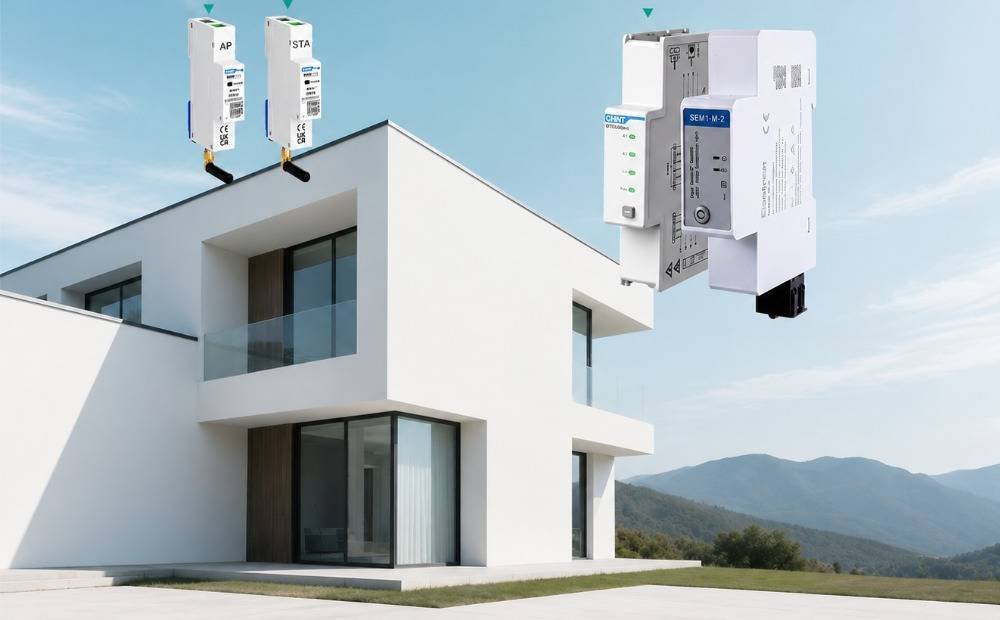

The Sigen Power Sensor delivers precise power detection to support accurate monitoring and control of your Sigen Energy system. With 1% high-accuracy power detection, it provides reliable measurement while its compact 1P size and plug-in design make installation simple and straightforward. It integrates smoothly with Sigenergy devices with no setup required. When used with the Sigen Sensor Sub1G Kit, it also supports WiFi HaLow remote communication, providing efficient and stable data transmission of up to 200 metres in open spaces
With 1% high-accuracy power detection, the Sigen Power Sensor delivers precise measurement for reliable energy monitoring and control. Its compact 1P size and plug-in design make installation simple, while seamless integration with Sigenergy devices means no additional setup is required. When paired with the Sigen Sensor Sub1G Kit, it supports efficient and stable WiFi HaLow remote communication.
|
|
|||
|
Working mode |
AP(master device), STA(slave device) |
||
| Communication method | RS485 / wireless communication | ||
| Network protocol | IEEE 802.11ah | ||
| Operating voltage | 85 ~ 277 Vac | ||
| Maximum power | 2 w | ||
| Operating temperature | -25 ~ 55 °C | ||
| Dimensions (W/H/D) | 18 / 118 /66 mm | ||
| Wireless frequency | 915 MHz | ||
| Wireless transmission distance 2 | ≤ 200 m | ||
| Way to install | DIN35mm Rail mounting | ||
1. For more models refer to the Sigenergy website
2. Sensors from two different manufacturers may be shipped interchangeably as they are functionally identical. Please refer to the actual products received for confirmation
3. Lab tests have shown a maximum horizontal range of up to 200 metres in open spaces, with shorter communication distances when walls are in the way
