Sigen Hybrid Inverter

Slim. Silent. Strong.

Sigen Hybrid Inverter

The 2nd generation Sigen Hybrid inverter is crafted with the industry-slimmest die-cast metal body. With enhanced heat dissipation design, there is no internal or external fans, ensuring an almost complete silent operation. Future-ready for battery integration, it’s a cost-effective choice to get start your green energy life.

Silent, like “soft whisper”

Experience peace and quiet with the Sigen Hybrid Inverter’s innovative fan-less design, delivering an ultra-low noise level of just 25 dB. Embrace green energy at night with whisper-quiet operation.

Slimmer, like “a deck of cards”

Sleek die-cast metal body with a compact 99mm depth, designed to save space and fit anywhere. Blends seamlessly with your home for a harmonious look.

99 mm

Fanless Design, Unmatched Stability

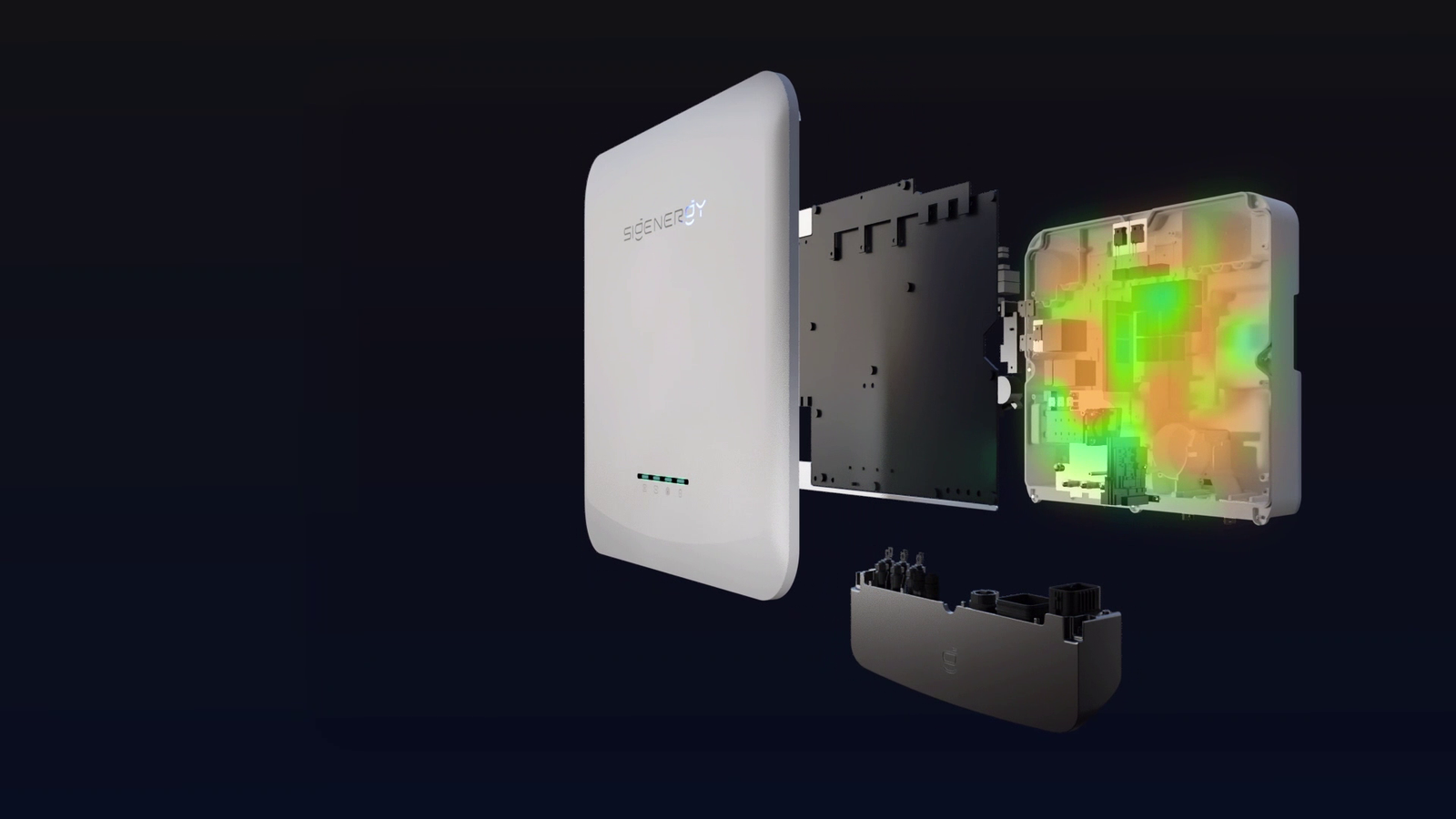

Optimize the internal component layout to meet the ultra-thin design requirements while eliminating the need for both internal and external fans. Fanless design ensures long-term stability and worry-free use.

Strong even smart, future ready

As a hybrid inverter, you can upgrade your solar system to a storage system at any time with Sigen Battery, enjoying seamless energy backup. Integrate with smart loads to unlock more energy application. Get involved in VPP, utilize the Sigen AI mode with dynamic tariffs, and access more additional features.

×

Trust in Safety, Built to Last

Sigen Hybrid Inverter is engineered for durability and reliable performance in demanding environments. With an IP66 protection rating, it operates consistently even in extreme weather conditions. Designed to deliver peak performance across a wide operating temperature range of -30°C to 60°C, it ensures dependable energy production throughout the year. Its long-term reliability is enhanced by a durable front-panel LED indicator and a fanless design, eliminating concerns about internal fan failures while reducing maintenance requirements.

icon

IP66 Rating

icon

Peak Performance

icon

Long-Term Reliability

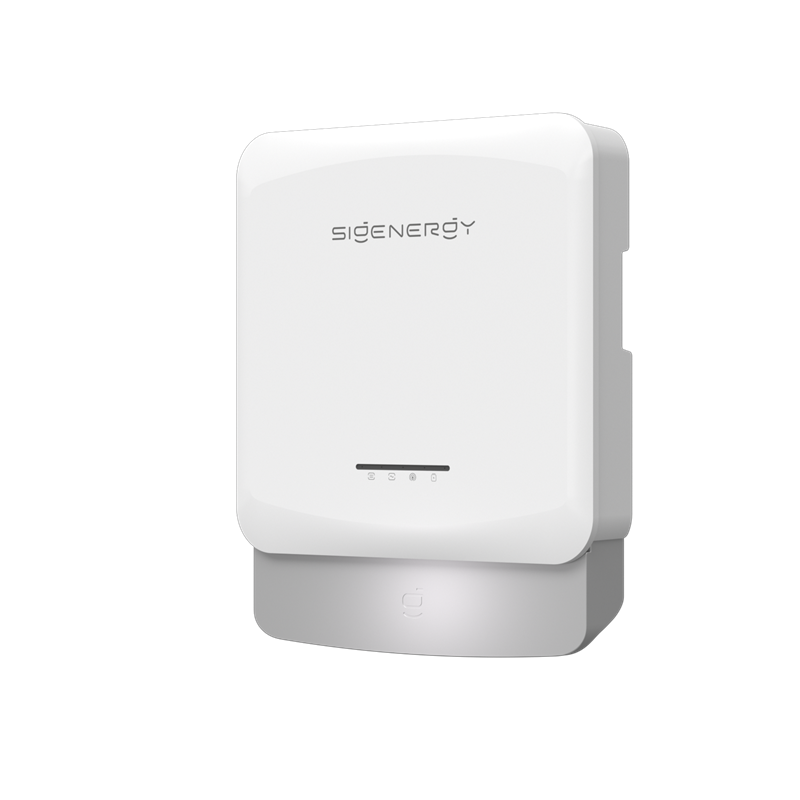

Sigen PV Inverter

Sigen Hybrid Inverter

Single Phase 3.0 – 6.0 kW
DC Input (PV)
MPPT voltage range 50 ~ 550 V
Number of MPP. trackers 2
Number of PV strings per MPPT 1
Max. input current per MPPT 16 A
AC Output (On-grid)
Nominal output power 3.0 – 6.0 kW
Nominal output voltage 230 / 240 V
Efficiency
Max. efficiency 98.4% / 98.5%
General
Dimensions (W / H / D) 365 / 460 / 99 mm
Ingress protection rating IP66
Night consumption ≤ 3 W
Noise ≤ 25 dB
